平口攪拌車液壓系統的保養要注意什么？

來源：http://www.jbckj.cn 瀏覽：0發表時間：2022-02-15

自上料平口攪拌車是新型的混凝土攪拌機，適用于一般高速公路，電站，道路，橋梁，筑壩工程，建筑工地，水電及大中型預制廠等工程。具有運轉平穩，結構緊湊，能耗少，傳動可靠，重量輕，生產效率高等優點，其液壓系統是否正常是保證平口攪拌車正常工作的重要因素，所以，對液壓系統的保養工作也是非常重要的。自上料平口攪拌車液壓系統的保養：

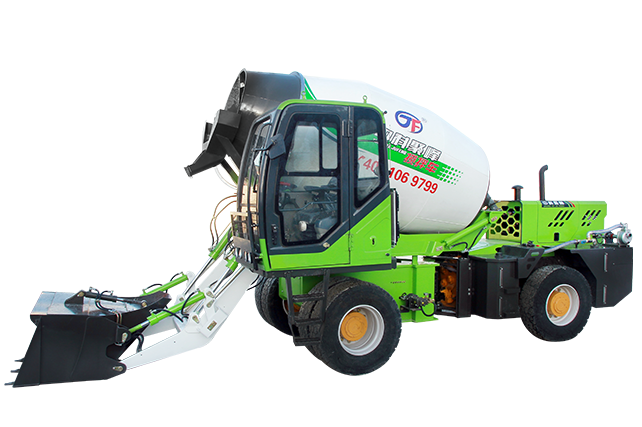

Self loading flat mouth mixer is a new type of concrete mixer, which is suitable for general highways, power stations, roads, bridges, dam construction projects, construction sites, hydropower and large and medium-sized prefabrication plants. It has the advantages of stable operation, compact structure, low energy consumption, reliable transmission, light weight and high production efficiency. Whether the hydraulic system is normal is an important factor to ensure the normal operation of the flat mouth mixer. Therefore, the maintenance of the hydraulic system is also very important. Maintenance of hydraulic system of self feeding flat mouth mixer:

1、新車使用50個小時，一定要禁錮固定泵和馬達以及減速機上的螺栓。

1. When the new car is used for 50 hours, the bolts fixing the pump, motor and reducer must be imprisoned.

2、每次開始工作之前，請檢查液壓油，如發現箱和減速機油窗口的油位標尺和油品顏色，并根據情況補油或更換。

2. Before each operation, please check the hydraulic oil. If you find the oil level gauge and oil color of the gearbox and deceleration oil window, replenish or replace it according to the situation.
全自動攪拌車廠家

3、液壓系統風扇表面散熱器保持清潔，確保良好的散熱效果，要注意風扇是否轉動。

3. Keep the radiator on the fan surface of the hydraulic system clean to ensure good heat dissipation effect. Pay attention to whether the fan rotates.

4、在冷啟動(尤其是冬季)要少運轉20分鐘以后再裝料。

4. In cold start (especially in winter), it is necessary to run for at least 20 minutes before loading.

5、工作的時候要注意檢查液壓油箱濾芯以及真空表，防止濾芯由于油質太差造成回油阻力過大。如發現阻力太大，應抽出濾芯然后再進行更換，甚更換液壓油。

5. When working, pay attention to check the filter element of the hydraulic oil tank and the vacuum gauge to prevent the filter element from excessive oil return resistance due to poor oil quality. If the resistance is found to be too large, the filter element shall be pulled out and then replaced, or even the hydraulic oil shall be replaced.

6、每次啟動時都要將液壓泵的操作桿放到中間的位置，操作液壓泵時不要猛拉猛推，要轉換方向的時候，一定要放在中間停滯5秒以上。

6. When starting each time, put the operating lever of the hydraulic pump in the middle position. Don't pull and push when operating the hydraulic pump. When you want to change the direction, be sure to put it in the middle and stop for more than 5 seconds.

7、經常檢查油泵和馬達，檢查其連接部位是不是有液壓油漏出，接口是否出現了松動，特別是液壓泵的吸油管路容易松動進氣，導致系統產生噪音和油箱呼吸口向外排油。

7. Often check the oil pump and motor, check whether there is hydraulic oil leakage at the connecting parts, and whether the interface is loose. In particular, the oil suction pipeline of the hydraulic pump is easy to loosen, resulting in noise in the system and oil discharge from the breathing port of the oil tank.

8、遇到路況較差時，一定要小心駕駛，避免損壞減速機主軸承。

8. In case of poor road conditions, be sure to drive carefully to avoid damaging the main bearing of the reducer.

以上就是今天帶給大家的知識全自動攪拌車廠家專注行業多年，為用戶不斷的提供有價值的內容，更多內容請繼續關注我們：http://www.jbckj.cn

The above is the knowledge brought to you today. Automatic mixer manufacturers have focused on the industry for many years and continuously provide users with valuable content. Please continue to pay attention to us for more content: http://www.jbckj.cn
